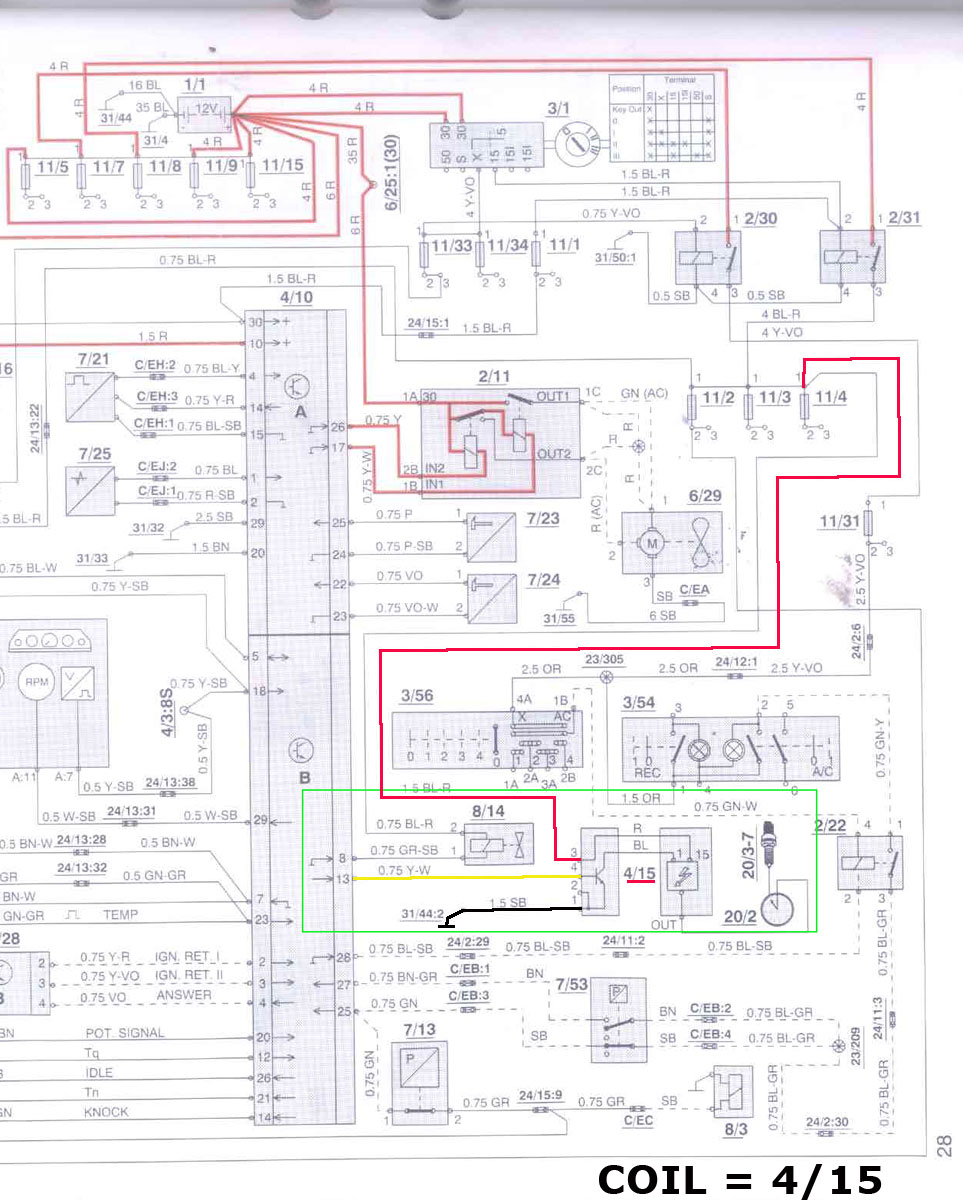

Johann Posted January 23, 2007 Report Share Posted January 23, 2007 How do I wire a Volvo 850 coil to a linkplus G2? And do I need the supressor? A wiring diagram of the stock volvo connection can be found here, http://www.swededemon.com/images/SDM/shots/engine/ecudiagram.jpg Quote Link to comment Share on other sites More sharing options...
ashesman Posted January 23, 2007 Report Share Posted January 23, 2007 You most definitely will need a supressor on the coil positive terminal. From the wiring diagram it looks like you have it all sorted anyway. Connect the yellow wire to the G2's Ign1 channel. Connect the supressor to the red wire and ground as close as possible to the coil. Quote Link to comment Share on other sites More sharing options...
Johann Posted January 24, 2007 Author Report Share Posted January 24, 2007 Thanks Ashley. Quote Link to comment Share on other sites More sharing options...
Johann Posted April 25, 2007 Author Report Share Posted April 25, 2007 You wanted to inform that I have the car up and running. Volvo 850 2.5 ltr 5 cylinder with throttle bodies. Car is running like a charm, engine responds to ECU changes very well. Overall I'm impressed. The one thing missing, closed loop lambda control preferable from a wideband. (LC-1 in this case.) Regards, Johann Quote Link to comment Share on other sites More sharing options...
Johann Posted April 25, 2007 Author Report Share Posted April 25, 2007 You =Just, sorry.. Quote Link to comment Share on other sites More sharing options...
ashesman Posted April 26, 2007 Report Share Posted April 26, 2007 Basic Closed Loop Lambda is completed and will be released in the next firmware update... Quote Link to comment Share on other sites More sharing options...
